01 / PLATFORM

Test operations,
in one environment.

RAQIA connects live monitoring, recording, replay, events, trajectory, and spatial investigation around a common telemetry model and a shared test timeline.

SYSTEM VIEW
01SOURCESAircraft / test hardware
→
02INGESTTransport + protocol
→
03NORMALIZECommon parameter model
→
04OPERATEMonitor / record
→
05INVESTIGATEReplay / analyze
CONFIGURABLE WORKSPACE

Build the test view around the mission.

Configure the workspace around the parameters and instruments relevant to the test while live telemetry, recording, and the shared timeline remain part of the same operating environment.

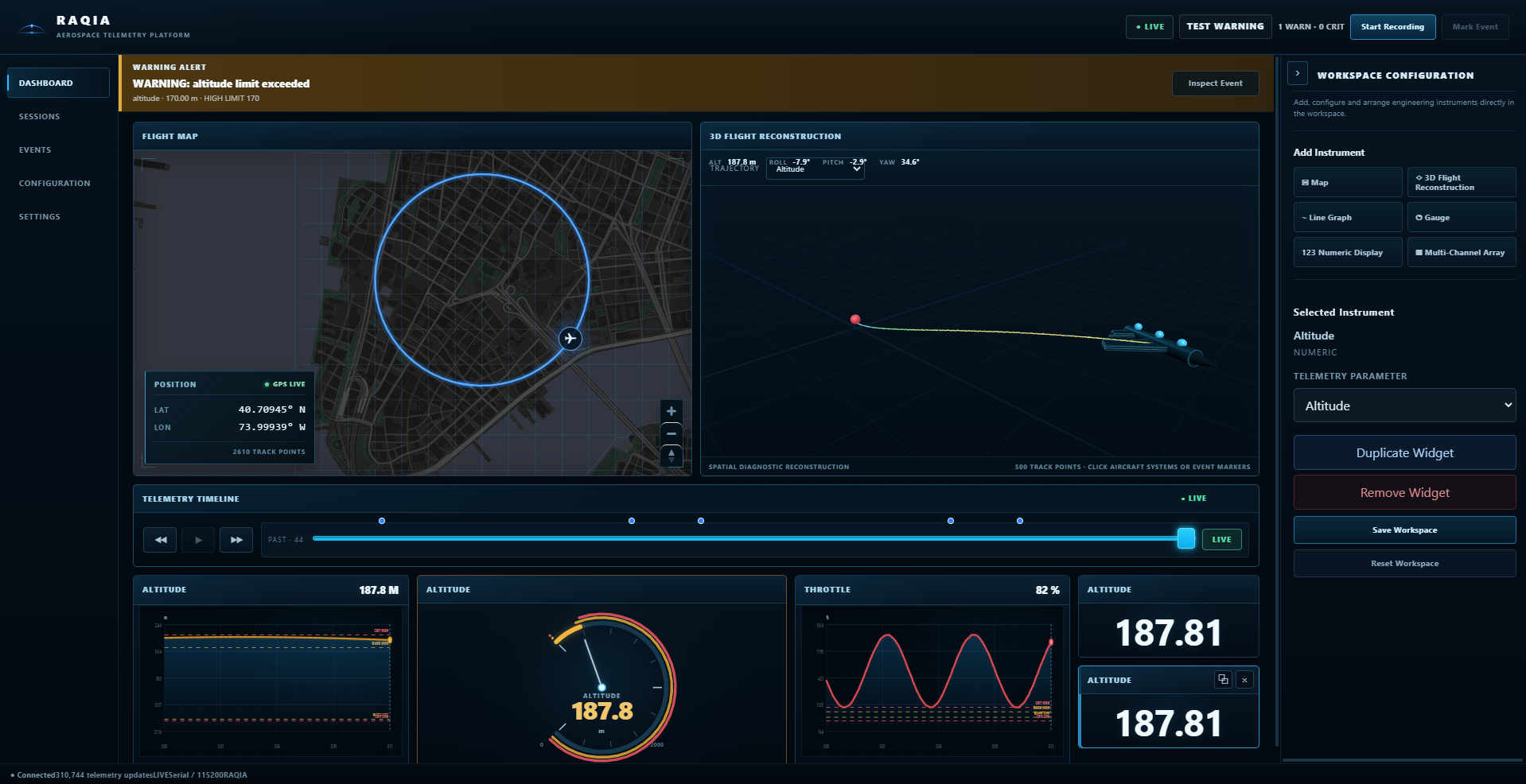

RAQIA telemetry dashboard with Workspace Configuration open
01 / LIVE TEST WORKSPACECONFIGURABLE INSTRUMENTATION · SHARED TEST TIMELINE
CAPABILITIES

From incoming signal
to engineering investigation.

01

Live telemetry

Monitor normalized engineering parameters in configurable gauges, graphs, maps, and workspace views while a test is running.

02

Test Sessions

Record telemetry, trajectory, events, alerts, and the active Test Configuration as a persistent engineering record of each run.

03

Synchronized replay

Move through recorded test time from one global timeline while telemetry values, graphs, maps, events, and spatial views remain synchronized.

04

Events + alerts

Define parameter limits, capture test events, and return directly to relevant moments during post-test investigation.

05

2D trajectory

Follow vehicle position and flight path alongside the same telemetry and timeline used throughout the rest of the workspace.

06

3D investigation

Reconstruct position, altitude, orientation, and trajectory in a spatial engineering view for deeper analysis of recorded test behavior.

3D FLIGHT RECONSTRUCTION
02 / SPATIAL INVESTIGATION

Investigate the test
in space and time.

Reconstruct trajectory, altitude, and vehicle attitude from normalized telemetry. Aircraft systems and recorded events remain connected to the same test timeline for spatial investigation.

TRAJECTORYATTITUDEEVENTSSYSTEM STATE

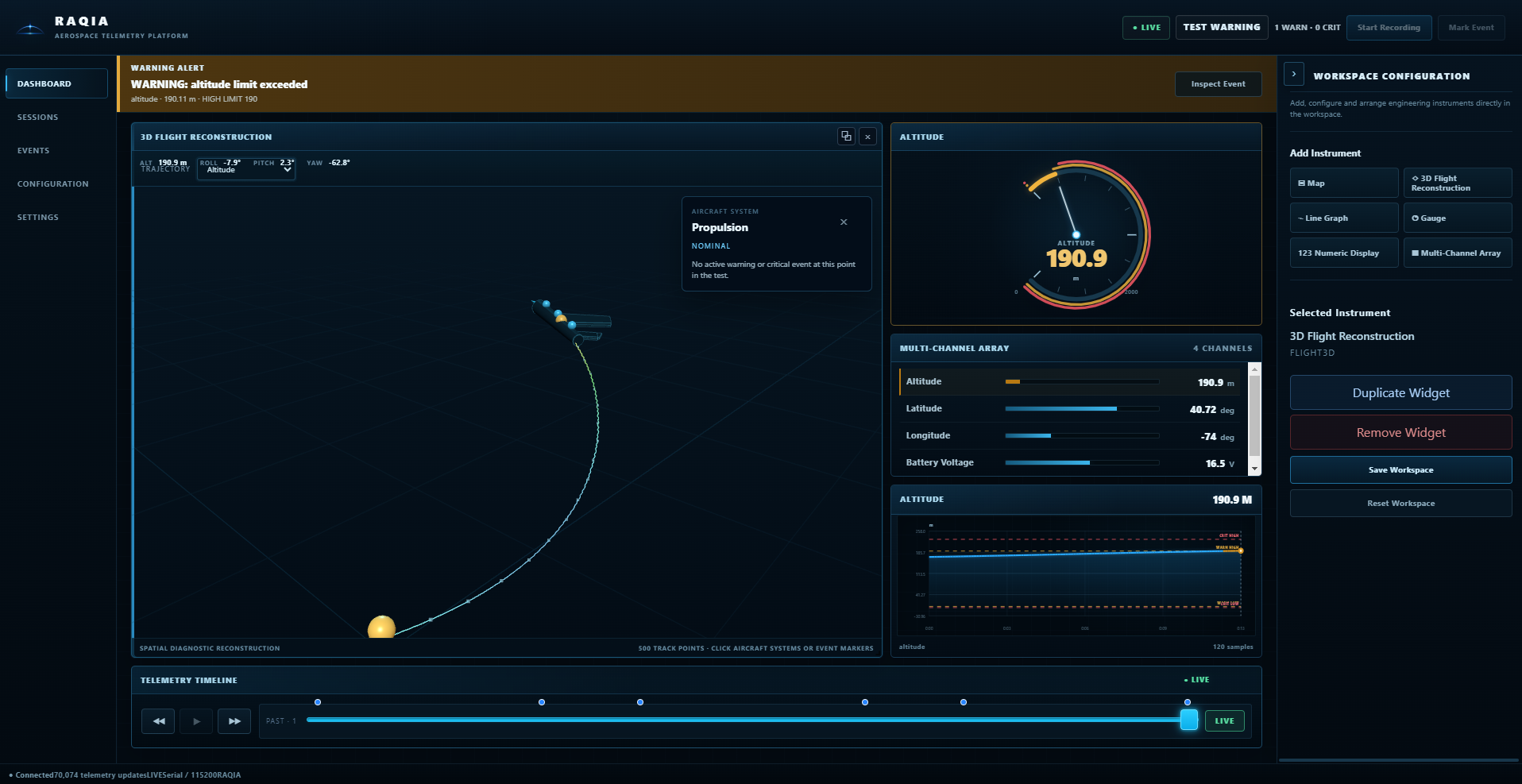

RAQIA 3D Flight Reconstruction showing aircraft trajectory, system nodes, telemetry instruments, and synchronized test events
INTERACTIVE FLIGHT RECONSTRUCTIONTRAJECTORY · AIRCRAFT SYSTEMS · EVENT SELECTION
GLOBAL TIMELINE

One moment.
Every view.

Selecting a point in test time synchronizes the engineering context around it: parameter values, graphs, trajectory, events, alerts, and spatial reconstruction.

TEST RECORDS
03 / RECORD + INVESTIGATE

Preserve the run.
Return to the evidence.

Test Sessions preserve recorded telemetry and test context for later review, while the event history provides a structured record of significant moments captured during the run.

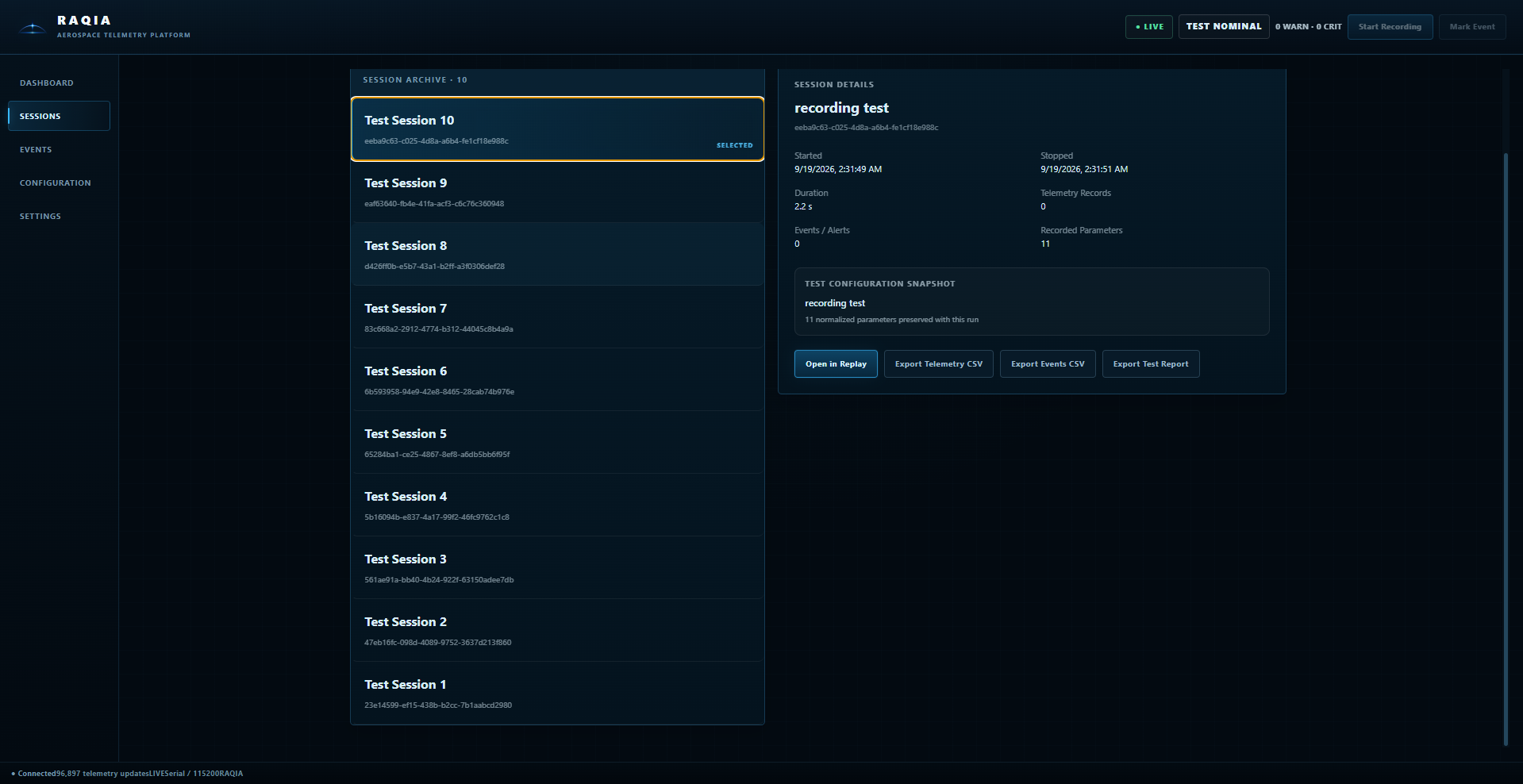

RAQIA Test Sessions interface showing recorded engineering test sessions
01
TEST SESSIONSPERSISTENT ENGINEERING RECORDS

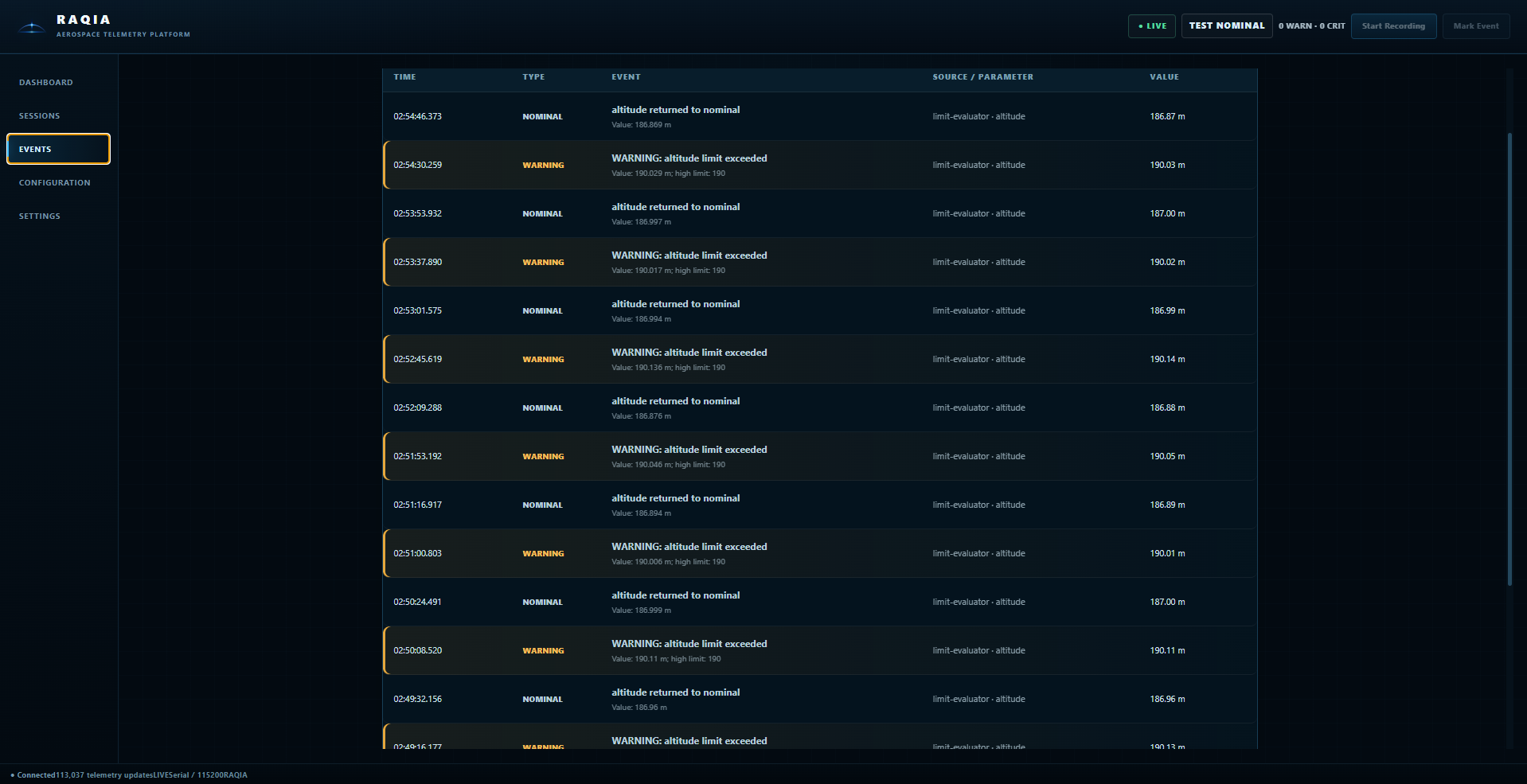

RAQIA Events and Alerts interface showing recorded telemetry events and alert history
02
EVENTS + ALERTSSTRUCTURED TEST HISTORY
NEXT / 02
UNDER THE PLATFORM

See how RAQIA handles telemetry.

Technology →
